Blocking Unwanted Calls with Call Telemetry

Call Telemetry provides a comprehensive set of tools to protect your organization from unwanted, spam, and malicious calls. This guide will walk you through the features and options available to you.

Centralized Voice Security and Call Blocking

Call Telemetry brings together multiple integration points of call blocking intelligence via CURRI and XCC into a single, centralized policy enforcement system. This ensures consistent protection across your entire voice infrastructure.

The first match wins — if a call is whitelisted at step 1, it skips all remaining checks. See Policy Processing Order for full details on each stage.

How Policies Are Enforced

Policies are evaluated as calls enter each integration point. Call Telemetry intercepts the call in real-time, runs it through your block lists, reputation scores, and policy rules, then tells Cisco to allow, block, or redirect — all before the phone rings.

Cisco CURRI Integration (CallManager)

Cisco CUBE XCC Integration (Network Edge)

Two enforcement points, one policy engine. Every block list, reputation score, watch list, and TDoS rule is evaluated at whichever integration point the call hits — or both if you run CUBE and CURRI together.

Two Ways to Integrate with Your Cisco Infrastructure

Feature	CURRI (CUCM)	XCC (CUBE)
Enforcement Point	Inside Cisco CallManager	Cisco CUBE router (network edge)
When It Fires	When CUCM processes a route/translation pattern	When SIP traffic enters your CUBE
Dialplan Scope	Enterprise internal — specific patterns or extensions	All PSTN traffic through CUBE
Best For	Granular per-pattern policy control	Broad network-edge protection
Setup	CURRI Integration Guide	XCC Integration Guide

Use either independently or combine both for defense-in-depth — block at the network edge with CUBE, then enforce granular policies inside CUCM.

Sources of Call Blocks

Call Telemetry provides multiple ways to block unwanted calls, giving you a comprehensive defense against spam, robocalls, and malicious callers:

1. Administrator-Managed Blocks

Administrators can directly manage the Global Block List through the web interface or API:

• Add individual numbers or ranges
• Import block lists from CSV files
• Set automatic expiration dates for temporary blocks
• Add notes and reasons for blocks

2. User Self-Service Blocks

Empower your users to block unwanted calls themselves:

• Cisco IP Phone MCID Button: Users can tag unwanted calls using the Malicious Call ID (MCID) softkey
• Cisco IP Phone XML Service: Web portal accessible directly from IP phones
• Cisco Jabber Portal: Custom embedded tab in Jabber for call blocking
• User-specific blocks: Each user manages their own block list

3. Automated Protection Systems

Intelligent systems that automatically detect and block suspicious call patterns:

• TDoS Protection: Automatically blocks aggressive calling patterns that could indicate a Telecommunications Denial of Service attack
• Watch Lists & Triggers: Monitors for suspicious call activity based on thresholds and adds numbers to watch lists for review
• Reputation-Based Filtering: Routes calls based on TrueSpam reputation scores

4. API Integration

Integrate call blocking with your existing systems:

• Full REST API access to the block list
• Automated call blocking scripts
• Integration with security systems and other platforms

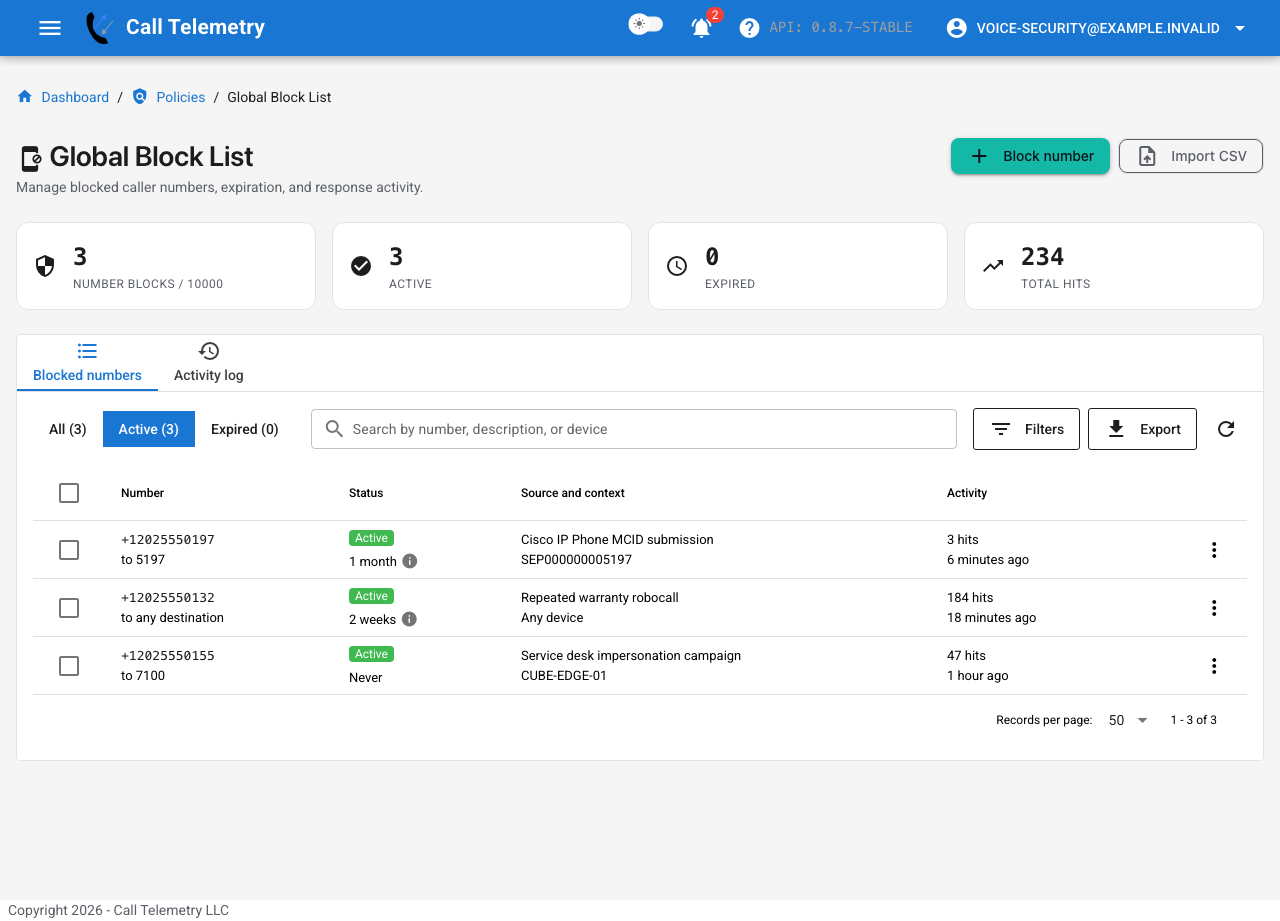

Centralized Block List Management

The Global Block Call Table simplifies administration across your entire voice infrastructure:

Key Benefits Over Native Cisco Solutions

Traditional Cisco call blocking methods have several limitations:

• Cisco IOS Reject Rules: Limited to 100 rules, not centrally managed
• Transformation Patterns: Require complex CSS/Partition planning, can't sync across clusters
• End User Management: Users typically must call helpdesk to block calls
• No Centralized Policy: Difficult to manage large block lists or integrate with other systems
• No Expiration Options: No way to automatically expire blocks
• Carrier Retry Issues: Some carriers retry rejected calls, consuming more resources

How Call Telemetry Solves These Challenges

• Centralized Management: Single interface for all blocks, even across clusters
• Multiple Integration Points: Works with both CURRI and XCC
• Self-Service Options: Users can submit their own blocks
• Expiring Blocks: Set time limits on blocked numbers
• Soft Blocks: Redirect calls instead of rejecting them
• Full API Access: Automate block list management

Intelligent Call Routing with Reputation Services

Beyond simple blocking, Call Telemetry can make intelligent routing decisions based on caller reputation:

TrueSpam Cloud Reputation

The TrueSpam Cloud Reputation App provides real-time reputation scores for incoming calls, allowing you to:

• Block Known Spam: Automatically block calls with poor reputation scores
• Rename Caller ID: Flag suspicious calls (e.g., "Potential Spam")
• Redirect Calls: Send suspicious calls to voicemail or another number
• Allow Known Good: Ensure important calls get through

Watch Lists and Triggers

Watch Lists and Triggers provide proactive protection:

• Threshold Monitoring: Set thresholds for suspicious call activity
• Automatic Detection: Add suspicious numbers to watch lists
• Administrator Review: Review, comment on, and take action on watched numbers
• Flexible Actions: Block, ignore, or monitor suspicious numbers

TDoS Attack Protection

TDoS Protection defends against Telecommunications Denial of Service attacks:

• Rate Limiting: Configure call rate limits to prevent system overload
• Automatic Blocking: Temporarily block aggressive calling patterns
• Real-time Alerts: Notify administrators of potential attacks
• Customizable Thresholds: Adapt to your organization's normal call patterns

Self-Service Call Block Portals

Empower your users to protect themselves from unwanted calls:

Blocking Calls from Cisco IP Phones

Users can block unwanted calls directly from their Cisco IP Phones using:

• MCID Button: Tag calls as malicious using the Cisco MCID softkey
• XML Service: Access a web portal directly from the phone
• User-Specific Blocks: Each user manages their own personal block list
• Expiring Blocks: Blocks can expire after a set period or be permanent

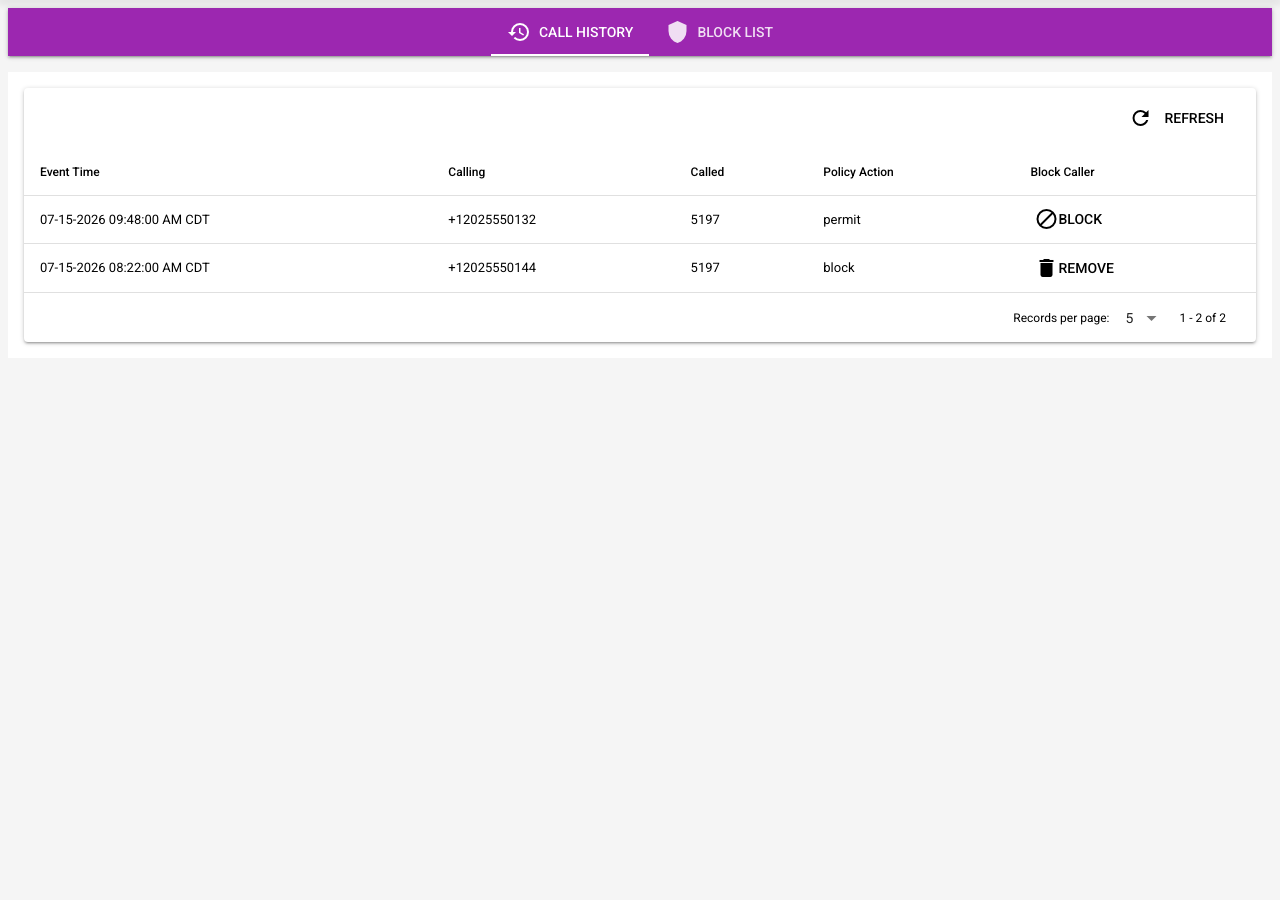

Blocking Calls from Cisco Jabber

Jabber users can block calls using:

• Jabber Custom Tab: Embedded web portal in Jabber
• Personal Block List: User-specific blocks across all devices
• Simple Interface: Easy-to-use block submission form

Call Block Management via API

For advanced integration and automation, Call Telemetry provides a comprehensive Voice Firewall API with 900+ REST endpoints that allow you to:

• Add, remove, and query blocked numbers
• Manage watch lists and violations
• Set expiration dates for blocks
• Integrate with other security systems
• Create custom block list management tools
• Automate responses to security incidents

See the full API Reference for complete endpoint documentation.
