Cisco IP Phone Management, Health, and Remote Control

Phone Management is a continuous operations workspace for Cisco Unified Communications Manager (CUCM) phones. It combines live inventory, registration health, switch-neighbor evidence, recent calls, media quality, state-change history, and browser-based remote control so UC teams can move from a fleet symptom to the affected phone without opening separate reporting and control tools.

One workspace from fleet health to device action

Phone Management connects four parts of phone operations that are often split across CUCM, network tools, call records, and device utilities:

1. Discover and prioritize — maintain a live phone inventory, summarize registration health, and identify whether affected devices share a subnet, switch, CUCM node, model, or firmware.
2. Investigate in context — open a phone without losing the fleet view, then inspect its CUCM identity, network attachment, current state, recent activity, Extension Mobility context, and change history.
3. Correlate service quality — keep recent calls and CMR measurements beside the device so registration, topology, and media-quality evidence can be compared over the same period.
4. Act and verify — rediscover stale data, open the phone web interface, launch Remote Control, or use supported multi-phone and reset actions when appropriate.

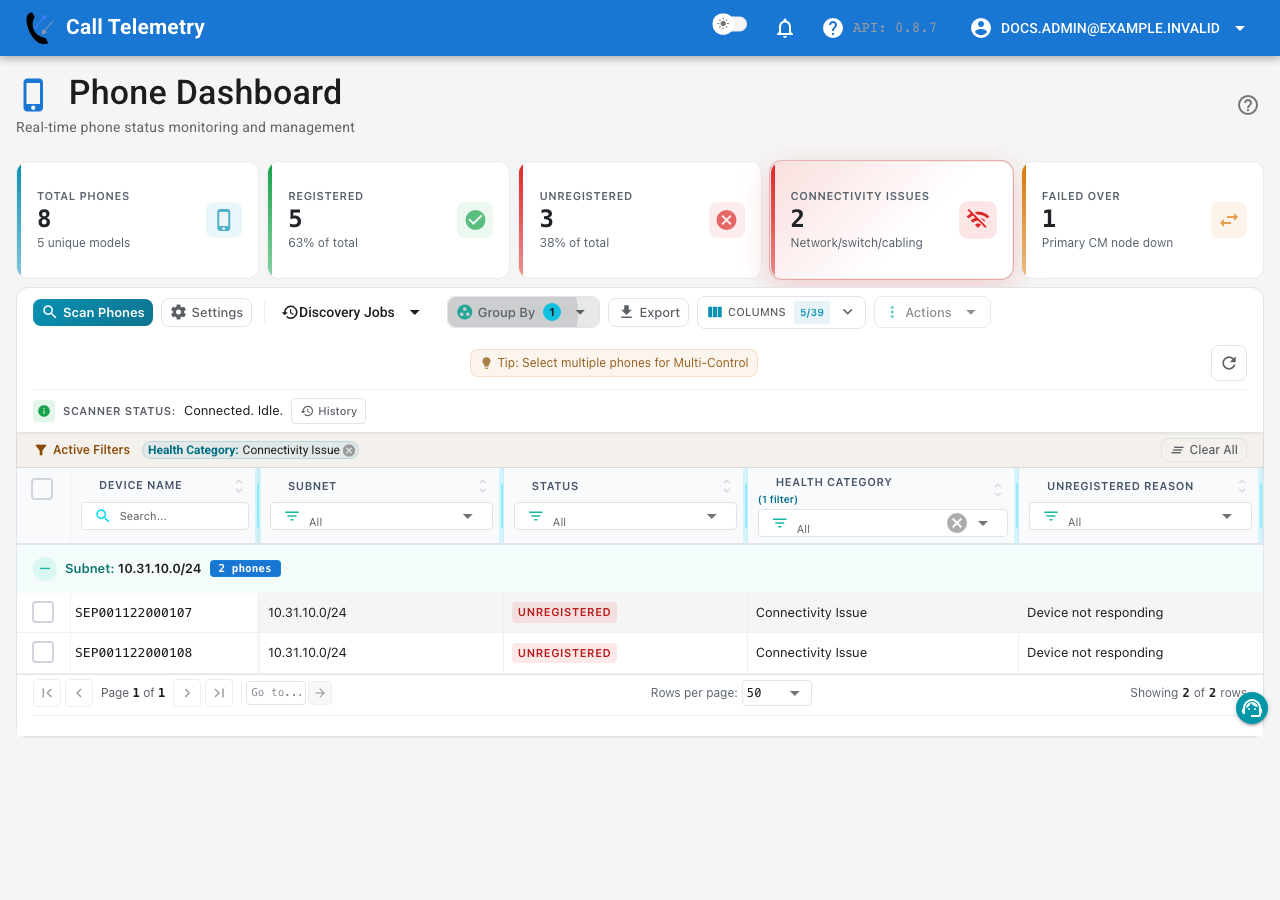

The Phone Dashboard is the operational center for inventory, health, discovery, grouping, device details, calls, quality, and history.

Investigate a phone with Phone 360

Select a phone to open Phone 360, the device-centered pivot panel beside the inventory. Device identity, registration, hardware, network topology, Extension Mobility, calls, quality, and state changes remain connected to the same phone record and time range.

This keeps fleet-level context and phone-level evidence in one workflow: identify the affected scope, inspect the device, compare calls and changes, and choose the next action from the same record.

Recent Calls and Quality Essentials

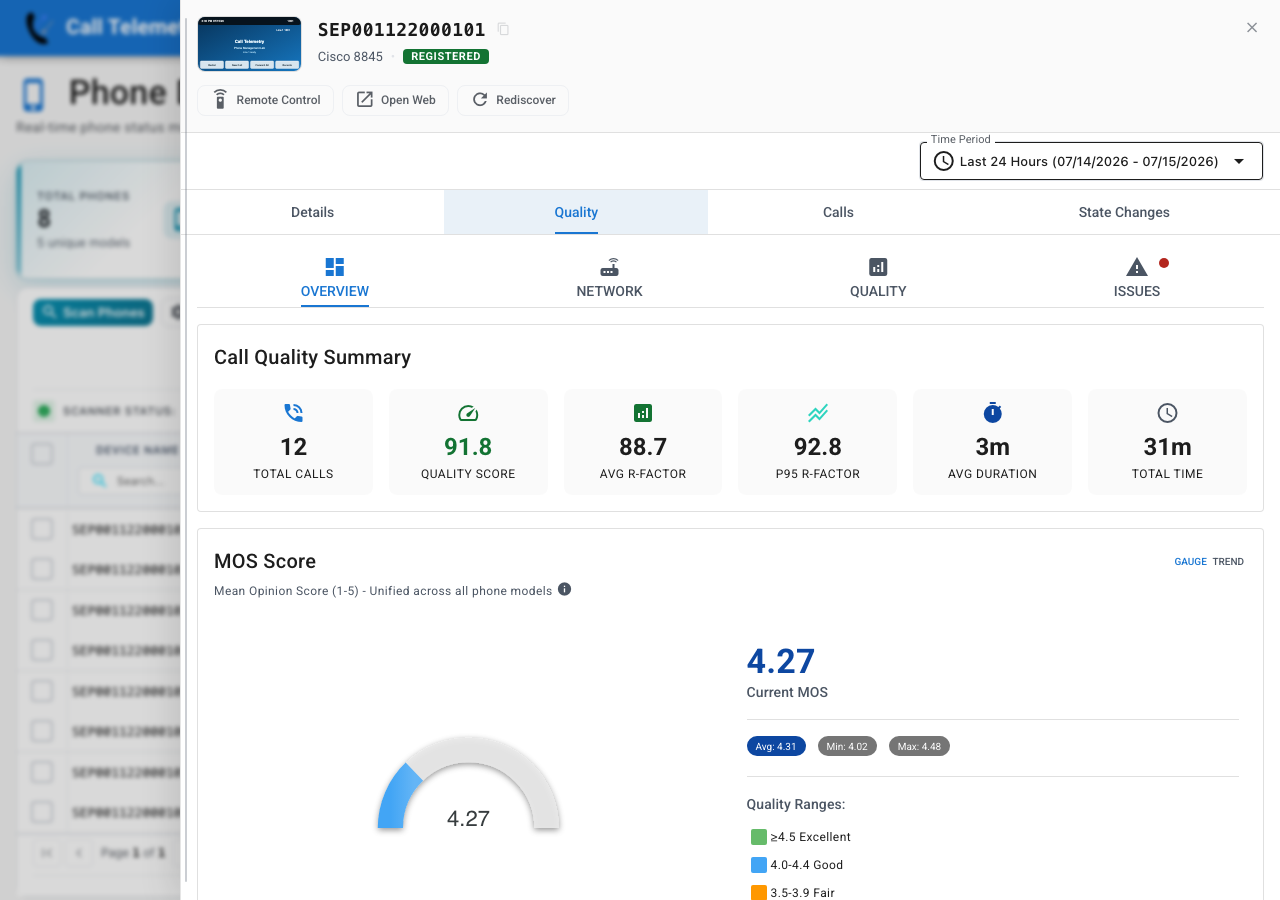

Within Phone 360, Quality summarizes recent call volume, Quality Score, R-factor, MOS, packet loss, jitter, latency, and concealment for the chosen period. Recent Calls keeps individual call legs and their available CMR measurements connected to the same phone. Administrators can compare that service-quality evidence with registration, network attachment, and state changes without starting a separate report.

Move from evidence to the phone

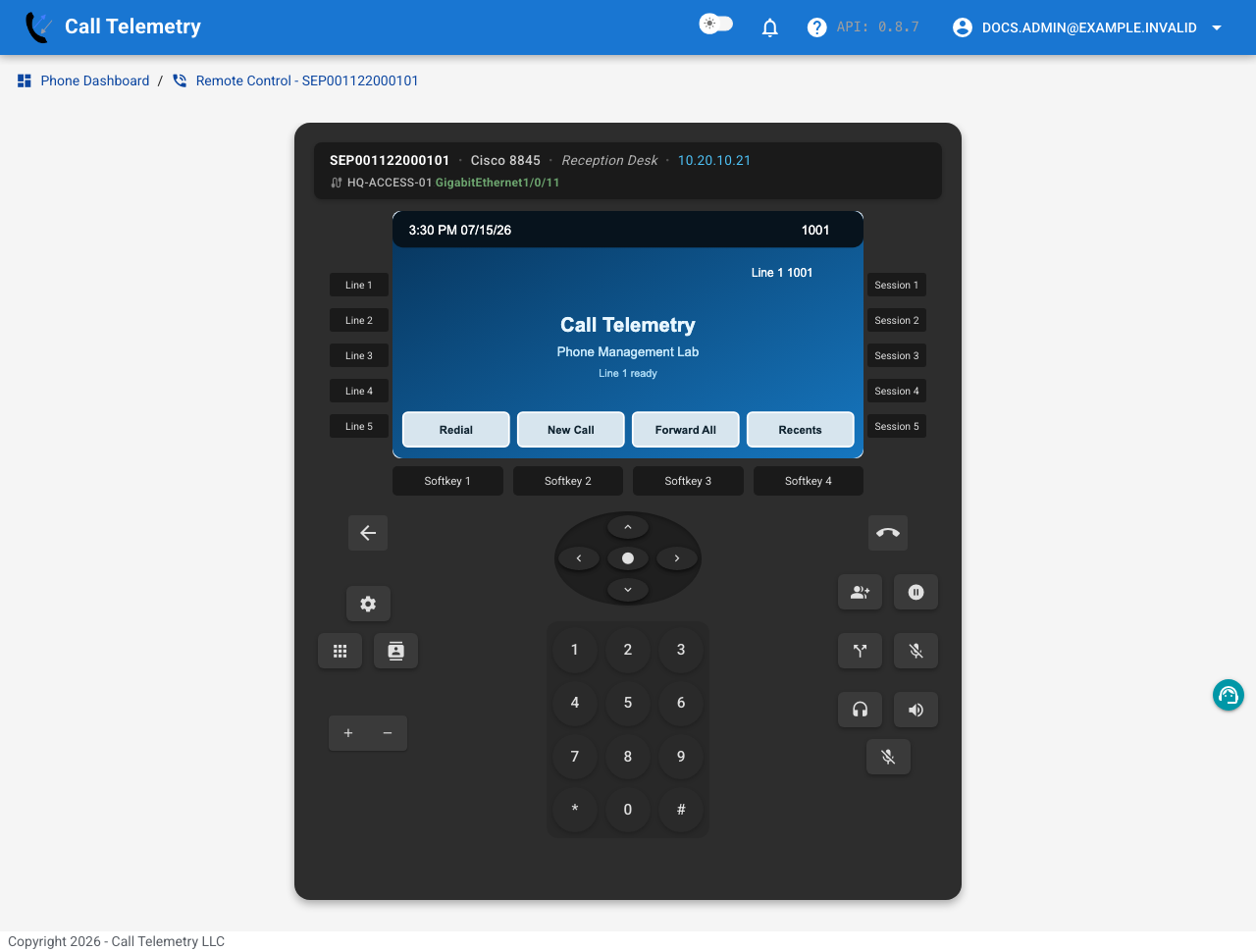

Remote Control opens a supported phone's live display and controls in the browser. It stays part of the same Phone Management workflow, so an administrator can move from fleet health to device evidence and then to the phone without switching applications.

With Remote Control, administrators can view the display, press softkeys and keypad controls, use line and feature keys, and adjust screen polling while actively working with a phone.

Multi-Control and phone automation Essentials

Essentials adds Multi-Control, automatic phone association for Remote Control, advanced Phone Settings, and supported automation. Operational actions remain separate from health findings so selecting or investigating a phone does not become an accidental bulk change.

Community and Essentials licensing

All discovered phones can remain visible in the Phone Dashboard. Licensing controls which phones expose complete detail and automation.

Feature	Community	Essentials or higher
CUCM integrations	1 cluster	Multiple clusters
Phone inventory and registration health	Included	Included
Complete discovery details	Up to 1,000 phones	Across the licensed fleet
Phones beyond the Community detail limit	Remain visible with licensed fields masked or previewed	Full licensed details
Phone 360 Recent Calls and Quality	—	Included with CDR and CMR data
Remote Control	Included for eligible licensed phones	Included
Reset ITL for selected eligible phones	Included	Included
Automatically associate phones for Remote Control	—	Included
Multi-Control	—	Included
Advanced Phone Settings and supported automation	—	Included

Community assignment prioritizes registered phones, then device name, when selecting the 1,000 phones that receive complete discovery details. The limit does not delete the remaining inventory.

Explore the guides

• Phone Dashboard — inventory, health correlation, device evidence, calls, quality, history, discovery, settings, and export
• Remote Control — live screen access, phone controls, automatic device association, and Multi-Control
• Troubleshoot Remote Control — missing screens, authentication Error 4, reachability, trust, and control failures

Data sources and requirements

• Configure the CUCM integration with AXL and RIS access.
• Enable phone web access and appliance-to-phone network reachability for hardware, neighbor, screen, and control features.
• Configure the CUCM application user used for Remote Control.
• Send CDR and CMR records to Call Telemetry for recent-call and media-quality correlation.

AXL provides provisioned configuration, RIS provides registration state and reason, reachable phone web interfaces provide device and neighbor evidence, and CDR/CMR provide the call and media path observed for the phone.
