Remote Control Cisco IP Phones

Remote control lets you access a Cisco IP phone from your browser — see the live screen, press buttons, and troubleshoot issues without walking the floor or asking users to describe what they see. Because the session proxies through the Call Telemetry appliance, help desk technicians do not need VPN access to remote phone networks and can control phones across sites, branches, and home offices.

Technicians see the current display, press softkeys and hardware keys, and inspect device context from the browser while the appliance communicates with the phone network.

Screenshot of the Remote Control page showing a fictional registered Cisco phone with an idle Line 1 screen and interactive controls

Feature overview​

Key capabilities:

  • Live streaming view of the phone's screen
  • Press any button remotely — softkeys, line keys, navigation
  • Click directly on the virtual screen to activate options
  • Phone intelligence beside the screen — device details, call quality, and call history
  • Multi-Control — view and control multiple phones at once on a single page
  • Bulk operations — reset ITLs and factory reset multiple phones
  • Works with all Cisco locale languages

Common use cases​

Help desk support​

  • See exactly what error the user sees
  • Walk them through complex features
  • Verify phone configuration without visiting the desk

Phone deployment​

  • Configure phones remotely after installation
  • Verify firmware and settings
  • Test features before users arrive

Troubleshooting​

  • Check network info (CDP/LLDP neighbors)
  • View registration status
  • Test call routing without being on-site

Requirements and licensing​

Remote Control and Reset ITL for selected eligible phones are included in the free Community plan. An Essentials or higher plan adds automatic phone association, Multi-Control, Advanced Phone Settings, and supported factory-reset automation.

Before you begin​

  • Configure the CUCM integration.
  • Enable web access for the phone model in CUCM.
  • Configure the CUCM application user credentials used for phone authentication and control.
  • Confirm that the Call Telemetry appliance can reach the phone IP address and CUCM authentication URL.

Open a phone​

  1. Open Phone Management > Phone Dashboard.
  2. Find the phone by device name, directory number, IP address, user, or description.
  3. Select the row to open Phone 360.
  4. Select the screen thumbnail or Remote Control in the Phone 360 header.

The page starts screen polling for that device. Use the breadcrumb to return to the Phone Dashboard.

Before opening the controller, use Phone 360 to review device details, recent calls, phone-level call quality, or state changes.

Operate the phone​

  • Read the live display at the top of the controller. An idle device normally shows its configured line and the softkey actions supplied by the phone.
  • Select the softkey buttons directly below the display to run the actions currently shown on the phone.
  • Use the navigation pad, select button, and keypad to move through menus or enter digits.
  • Use line, messages, services, directories, settings, help, hold, transfer, conference, headset, speaker, mute, volume, and end-call controls supported by the device.
  • Adjust Screen Refresh when active troubleshooting needs faster updates or a slower interval would reduce polling traffic.

Phone details, call quality, and call history​

Phone intelligence stays beside the screen while you control the device:

  • Details — MAC address, model, IPv4/IPv6 and subnet, CDP/LLDP neighbor data (switch IP, hostname, and port), and CUCM configuration such as device pool and cluster assignment.
  • Call Quality — CDR and CMR analytics filtered to this phone: Quality Score and MOS gauges, R-Factor averages and P95, call volume and duration, plus network and quality breakdowns highlighting problem calls.
  • Call History — search recent calls for this phone, drill into exact CDR/CMR data for any call, and correlate user complaints with call metrics.

See Phone 360 for the full investigation workflow.

Refresh device data​

Select Rediscover when the dashboard data is stale or the phone has moved. Rediscovery refreshes reachable registration, network-neighbor, hardware, and configuration details without changing the phone configuration.

Reset ITL and factory reset​

Two reset operations are available from the controller for eligible phones:

  • Erase ITL clears just the ITL file without a full factory reset. It only works while the phone still trusts CUCM — useful for stale ITL entries, after adding new TFTP servers, or before cluster changes. If trust is already lost, a factory reset is required instead.
  • Factory Reset erases all configuration, deletes trust lists (ITL/CTL), and reboots the phone to re-register with CUCM.

Treat both as disruptive: confirm the target device and the expected CUCM recovery path before running them.

Automatically associate phones for Remote Control Essentials​

When a remote screen returns authentication Error 4 and automatic association is enabled, Call Telemetry checks the configured CUCM application user and attempts to add the eligible phone to its controlled devices. The polling workflow then retries the screen request; technicians do not normally need to pre-associate every device by hand.

This is device association for Remote Control, not general CTI recovery. If the association or retry fails, follow Troubleshoot Remote Control to check credentials, web access, CUCM authentication URLs, device trust, and the final CUCM association.

Reset ITL for selected eligible phones is available in Community. Advanced Phone Settings and supported factory-reset automation require an Essentials or higher plan. Treat phone-changing actions as disruptive: confirm the target device and expected recovery path before running them, especially in bulk.

Multi-Control Essentials​

Select supported phones in the Phone Dashboard, then choose Open Multi-Control. Each tile has independent screen polling and controls; drag tiles to keep related devices together and choose the layout and common polling interval from the toolbar.

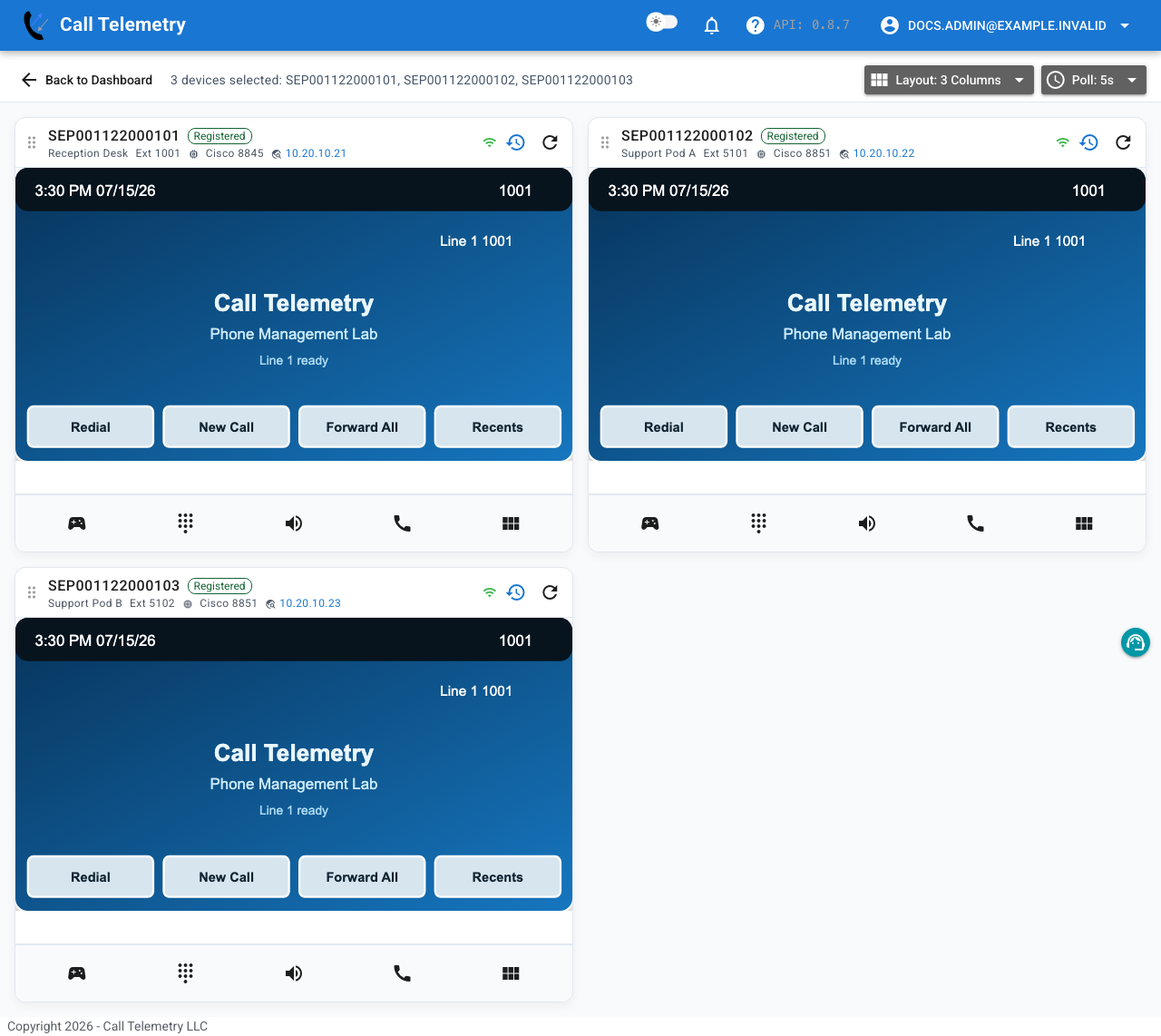

Screenshot of the Multi-Control workspace with three fictional registered phones in readable tiles and no application navigation drawer

Keep the selection small enough for technicians to read and operate each screen. The application warns when the selection exceeds the recommended count because every active tile adds phone requests and browser updates.

Bulk remote operations​

From the Phone Dashboard, select multiple phones and choose a bulk action:

  • Bulk ITL Reset — clear ITLs on all selected eligible phones
  • Bulk Factory Reset Essentials — factory reset multiple phones at once
  • Bulk Reboot — restart phones during maintenance windows

Bulk actions are distinct from Multi-Control: Multi-Control views and operates many screens, while bulk operations apply one action to many phones. Confirm the selection carefully — these actions are disruptive at scale.

Common issues and quick fixes​

For step-by-step resolutions, see Troubleshoot Remote Control.

  • Screenshot not available — connection timeout or "No Screenshot available yet, check Event History" → phone reachability and web access
  • Authentication Error 4 — phone authentication failed; usually user permissions or device association → resolve Error 4
  • Buttons don't work — screen loads but keys are rejected; typically CTI connection or permissions → fix button control
  • Phone not responding — no response at all; usually network connectivity or firewall → network checks

Supported phone models​

Remote Control works with virtually all Cisco IP phones that support web access:

  • 9800 Series: 9841, 9851, 9861, 9871
  • 9900 Series: 9951, 9971
  • 8900 Series: 8811, 8841, 8845, 8851, 8861, 8865, 8961
  • 7800 Series: 7811, 7821, 7832, 7841, 7861
  • 7900 Series: 7902, 7905, 7906, 7911, 7912, 7931, 7936, 7937, 7937G, 7940, 7940G, 7941, 7941G, 7942, 7942G, 7945G, 7960, 7960G, 7961, 7961G, 7962G, 7965G, 7970G, 7971G, 7975G
  • 6900 Series: 6901, 6911, 6921, 6941, 6945, 6961
  • 3900 Series: 3905, 3911
  • Wireless: 8821, 7921G, 7925G, 7926G
  • Conference: 8831, 8832

Security considerations​

  • Phone screens are proxied through Call Telemetry — no direct phone access needed
  • Remote control requires authentication to the Call Telemetry admin portal
  • No VPN or direct network access required to phone VLANs
  • Uses the phone's existing web access security settings from CUCM
  • CTI permissions provide granular control over which phones can be accessed
  • All communication encrypted via HTTPS from browser to Call Telemetry
  • Phone authentication validated through CUCM's secure authentication URL
